15 01/06

Sync files between computers with Strongspace

I use Strongspace for an online backup service. I’ve got quite a few pictures and documents that I don’t want to loose if something were to happen to the various computers they are stored on. I signed up for Strongspace rather than something like Foldershare because I want the security of the files stored at another physical location rather than syncronized to all my computers. Howerver, I recently decided it would be nice to have one directory of things syncronized to my laptop, desktop, and work computer so I set out to figure out how to do it with Strongspace.

While searching, I found this post about how to use rsync on Windows to copy stuff to Strongspace. Rsync seemed like a possible solution. However, contrary to it’s name, it won’t really sync files. It’s a one-way sync. I also checked out Unison. It does a two-way sync, but it’s not setup to work on Strongspace. So, I had to roll my own, trying to be a secure as possible every step of the way. Here’s how I set everything up.

Downloading and Installing

Here are the things you’ll need:
* [WinSCP](http://winscp.net/) (Nice client for SFTP/SCP. Supports syncronizing folders.)
* You’ll need the installer for WinSCP3.com for command line.
* [Pageant](http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html) (Used if you encrypt your private key on your local machine)
* [PuttyGen](http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html) (For key generation)

Copy pageant.exe, and puttygen.exe to a tools directory. Copy WinSCP3.exe and WinSCP3.com to the same directory.

Setting up a key

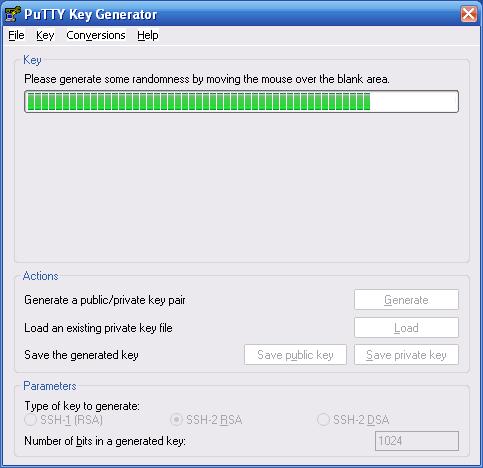

First, you need to generate a key so you won’t have to login to Strongspace each time the update runs. Run puttygen.exe to setup your key.


Once it genrates a key, you’ll want to set the comment (I use username and password of the computer I’m using). And a passphrase. You don’t _have_ to set a passphrase if you don’t mind your private key sitting unencrypted on your disk. But I think it’s a good idea to encrypt the private key. Save the private key to the same directory that you were saving the above apps.


Before closing PuttyGen, log into your Strongspace account and create a .ssh/authorized_keys file and paste the contents of the “Public Key” of PuttyGen as the first line of the file.

Next, you’ll need to setup Pageant if you set a passphrase for your key. Pageant will prompt you for your passphrase and then enencrypt your key in memory. Putty and WinSCP3 know how to get the key from Pageant. You’ll probably want to start Pageant when the system starts. I create a batch file that contains this line and add it to my startup folder:

c:\strongspace\tools\pagent.exe c:\strongspace\config\strongspace.ppk

Configure WinSCP

Launch WinSCP3.exe to configure your session. Want to set the following information:

* Host name: username.strongspace.com
* User name: username
* Private key file: location of your key


Then hit “Save” and give the session a name like “Strongspace”.

Sync script for WinSCP

WinSCP3 has a pretty good scripting environment set up. There’s a lot more information in their scripting documentation. I use a really simple script to sync c:\strongspace\shared with a directory called “Shared” in Strongspace.

option batch on
option confim off
option synchdelete
synchronize both c:\Strongspace\Shared Shared

Save this script file in the same directory as the above tools and run the following command to start a sync:

winscp3.com /console /script=winscp_script.txt Strongspace

Where “Strongspace” is the name of the session you saved in WinSCP’s setup. The important part of this script is the “synchronize both” section. This does the two-way sync.


You can set this up to run at certain times with Windows Task Scheduler (Control Panel -> Scheduled Tasks). Since my collection of files is fairly static (small utilities)), I created a batch file with the above command and put it on my desktop so I can run the sync any time I know something has changed.
